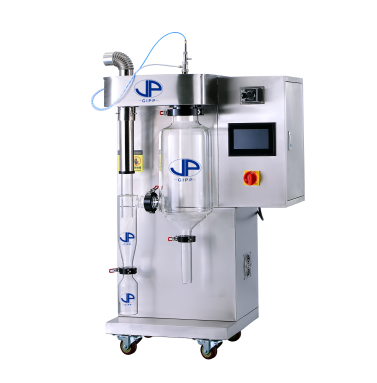

Spray Dryer, small for laboratory
| brand: Labotecgroup.com | id: 20-00-SD |
*-LABORATORY SMALL SPRAY DRYER marca LABOTECGROUP.COM modelo 20-00-SD.-
Features:
? 20-00-SD laboratory small spray dryer uses imported nozzles for high efficiency
?The machine has 485 communication interface, which can be controlled remotely, especially suitable for laboratories or factories with relatively complicated working environment (optional)
?Using color LCD large LCD touch screen operation, automatic control and manual control combined
? Full-automatic control: After one-button start-up, after setting the spray process parameters, the temperature reaches the predetermined temperature and starts up automatically. The running animation is displayed on the touch screen, and the running process is clearly displayed. When the machine is shut down, just press the stop button and the machine automatically shuts down safely.
?Manual control: If the process parameters need to be adjusted during the experiment, it is convenient to switch to the manual state. The color touch screen is dynamically displayed (animation) throughout the experiment.
? Shutdown protection function: After the instrument is finished, the working state of the fan should be kept, so that the glass is partially cooled. The machine is set by intelligent program. When the inlet temperature is lower than 30 degrees, the fan is automatically turned off, no manual manual shutdown of the fan is required; protection equipment Do not overheat the heating element due to misuse (forced shutdown of the fan)
? Time setting function: The user can set the working time of the machine by himself, without manual guarding, and the working time ends the machine to stop working, which greatly saves the precious time for the customer to do the experiment.
?The laboratory small spray dryer has a built-in oil-free air compressor. The air compressor is equipped with a stainless steel gas storage tank. The diameter of the powder spray is normally distributed, the fluidity is good, and the noise is very low, which meets the national laboratory noise standard.
?The atomization structure of the two-fluid spray, the whole machine body is made of high-quality stainless steel material with precision design, compact design, no need for auxiliary equipment, convenient use, and lasting as new.
?The spray, drying and collection system is made of transparent high-quality borosilicate heat-resistant glass material, so that the drying process can be carried out in a non-polluting environment; and the whole spray drying experiment process is transparent and intuitive, all the original glass parts are easy to be removed and washed;
? In order to meet the requirements of the user to adjust various parameters in the experimental range, the real-time control PID constant temperature control technology is adopted in the design of the drying temperature control, so that the temperature control in the full temperature zone is accurate, and the heating temperature control precision is ±1 °C.
Specifications:
1, Control dual control modes: automatic control and manual, the entire experimental process color touch screen dynamic display (animation) air inlet temperature / outlet temperature / peristaltic pump speed / air volume / needle frequency
2, inlet air temperature control: 30 ° C ~ 300 ° C
3, the outlet temperature control: 30 ° C ~ 140 ° C
4, the amount of evaporated water: 1500mL / H ~ 2500ml / h
5, the maximum feed amount: peristaltic pump adjustable up to 2500ml / h
6, the minimum amount of feed: 30mL
7, the host stainless steel material, never rust corrosion, high quality borosilicate heat-resistant drying chamber, high-quality high borosilicate heat-resistant cyclone separator, high-quality high borosilicate heat-resistant sample collection bottle, high-quality borosilicate heat-resistant sample collection tube .
8. Real-time PID temperature control technology, real-time online display of inlet air temperature and outlet temperature, temperature control accuracy ±1 °C
9, drying time: 0.8 ~ 1.5S
10. The machine has the function of mis-operation protection. When the order of the fan and heater switch is wrong, the machine automatically reminds you to prevent the novice from mishandling the machine.
11. The small spray dryer has the shutdown protection function: just press the stop button when shutting down, the machine will stop running immediately except the fan to ensure that the equipment will not burn out due to misoperation (forced off the fan).
12, nozzle diameter: 0.5mm / 0.7mm / 0.75mm / 1.0mm / 1.5mm / 2.0mm optional, and can be customized according to requirements
14. After drying, the finished dry powder has a relatively uniform particle size, and more than 95% of the dry powder is in the same particle size range.
15. For the adhesive material, there is a nozzle cleaner (through needle), which will automatically clear when the nozzle is blocked, and the frequency of the needle can be adjusted automatically.
16, intelligent control system, replacing the PLC control on the market, the stability is stronger,
17. Automatic fan stop function: After the instrument is finished, the working state of the fan should be kept, so that the glass is partially cooled. The machine is set by intelligent program. When the inlet temperature is lower than 30 degrees, the fan is automatically turned off, and there is no need to manually close the fan manually.
18, air compressor: 0.2KW maximum gas production 4.2m3 / h, compressed air working pressure: 2 ~ 3Bar
19, the whole machine power: 3.8KW/220V
20, fan: 0.6KW maximum air volume 5.6m3 / min maximum wind pressure 1020Pa
21, external dimensions: 1300mm (height) × 650mm (length) × 500mm (width)
Accessories: high quality borosilicate heat-resistant glass drying chamber, high quality borosilicate heat-resistant glass cyclone separator, high-quality borosilicate heat-resistant glass sample collection bottle, high-quality borosilicate heat-resistant glass sample collection tube, conveying silicone tube , clamps, etc.
