TERMOCICLADOR con función Gradiente
| brand: Labotecgroup.com | id: 9600 |

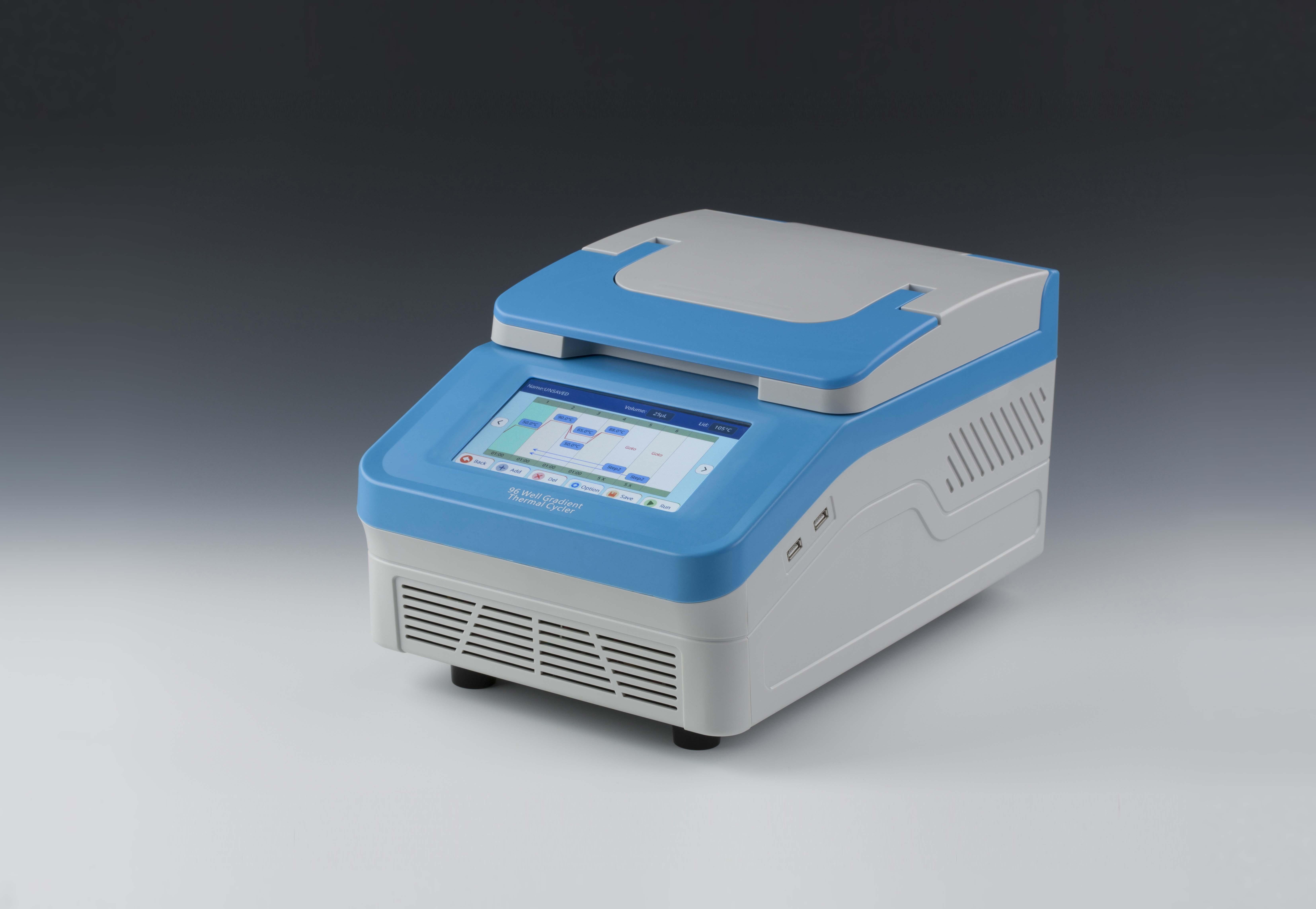

*-TERMOCICLADOR CON GRADIENTE marca Labotecgroup.com modelo 9600.
1. Introduction
Gradient Thermal Cycler is a gene amplification instrument with gradient PCR function derived from ordinary PCR instrument.
It is produced by basing on highly reliable semiconductor peltier and embedded operating system. Gradient thermal cycler is
ideal for thermal cycling and protocol optimization in molecular biology, medical, food, genetic testing and etc.
Features:
? Excellent amplication due to high quality semiconductor peltier.
? Reinforced aluminum block with anodizing technology can keep rapid
heating-conducting property and have enough corrosion resistence.
? The fastest heating and cooling rate of 5?C /s save valuable experimental time.
? 7-inch color touch screen—for easy programming of users.
? Self adjusting heated lid: excellent anti-evaporation effect, it can adapt to different height test tubes.
? Gradient PCR set up with 12 different temperatures.
? Built-in standard procedure document template can quickly edit the required documents.
? One-click quick incubation function can meet the needs of experiments such as denaturation, enzyme cutting/enzyme-link,
and ELISA.
? Support U disk to get PCR data to update software.
? Automatic restart after power failure.
? Automatic fault detection and alarm function.
Project
Parameters
Capacity
96x0.2ml (0.2ml PCR tubes, 8-tube strips)
Temp. setting range
4°C~105°C
Heated lid temp. range
30°C~115°C (user adjustable)
Temp. accuracy/uniformity
?±0.2?/?±0.2?
Max. heating rate
5?/sec
Max. cooling rate
4?/sec
Temp. display resolution
0.1?
Temp. control method
Block/Tube
Display
7-inch color touch screen, 800x480 Pixel
Communication interface
USBx2
Tm calculation
Automated
Program memory
10000+
Time increments/decrements
-999~999s
Temp. increments/decrements
-10~10°C
Gradient temp. range
30~105°C
Gradient setting range
0.1~30°C
Gradient temp. uniformity
?±0.2°C
Gradient temp. accuracy
?±0.2°C
Temp. change rate
0.1~4°C/s
Single step time range
0~9h59min59s/?
Program max. cycle numbers
100
Max. steps of the program
30
Program pause function
Yes
16°C insulation
Forever
Auto data protection
Yes
On-screen report
Yes
Power
800W
Voltage
AC100~240V, 50-60Hz
Fuse
250V 10A ?5×20
Dimension(mm)
420x260x245
Weight
11
